Hardwire Kit

70mai Hardwire Kit - Micro USB (UP02)

RM89.00
As low as RM7.41 / mo at 0% for 12 months
In stock

Description

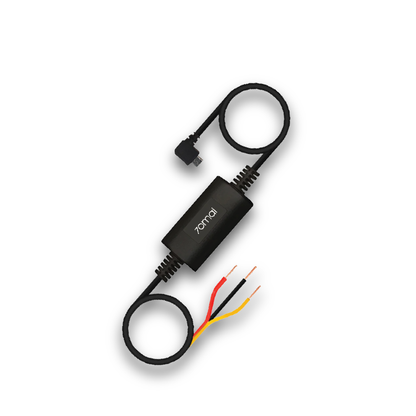

The 70mai UP02 is a Micro-USB hardwire kit that connects your dash cam directly to the vehicle's fuse box. It is the essential component for users wanting to unlock 24-hour parking monitoring and protect their car while it is unattended.

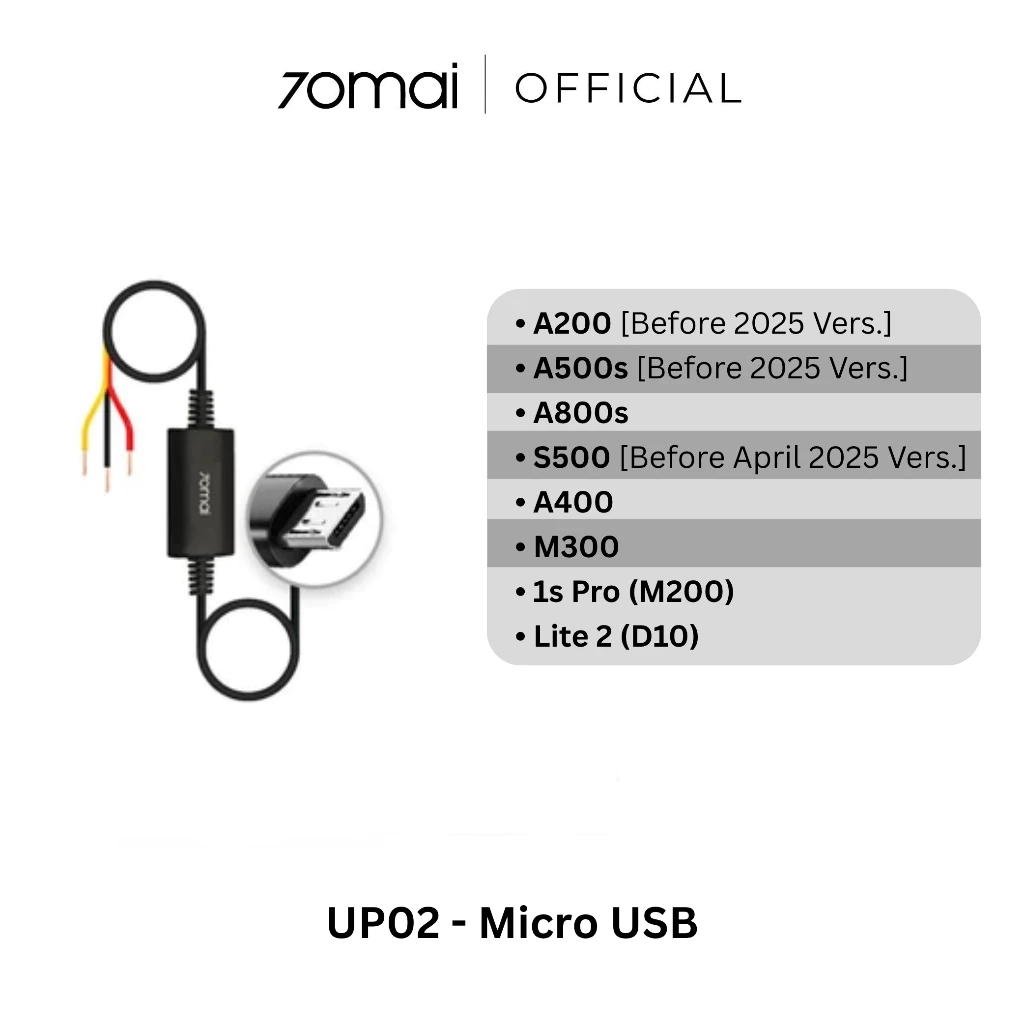

SUPPORTED MODEL 📸

  • A200 [Before 2025 Version, NOT CURRENT SELLING MODELâť—]
  • A500s [Before 2025 Version, NOT CURRENT SELLING MODELâť—]
  • A800s [Before April 2025 Version]
  • S500 [Before April 2025 Version, NOT CURRENT SELLING MODELâť—]
  • A400
  • M300
  • 1s Pro (M200)
  • Lite 2 (D10)

Dash Cam Example

Features
  • 24H Parking Surveillance

Powers the dash cam while the vehicle is parked to record collision-triggered events.

  • Low-Voltage Protection

Automatically cuts off power when the car battery reaches a certain threshold to prevent drainage.

  • Micro-USB Interface

Designed specifically for 70mai models utilizing the older Micro-USB power port.

What's Included
  • 70mai Hardwire Kit UP02 x1
  • User Manual x1

Specifications
  • Model

UP02

  • Cable Type

Micro-USB

  • Cable Length

3.3m

  • Input Voltage

DC 12-30V

  • Output Voltage

5V/2.4A

  • Low-Voltage Cutoff (Small Car)

11.4V

  • Low-Voltage Cutoff (Big Car)

23.6V

Warranty

18 Months Warranty
