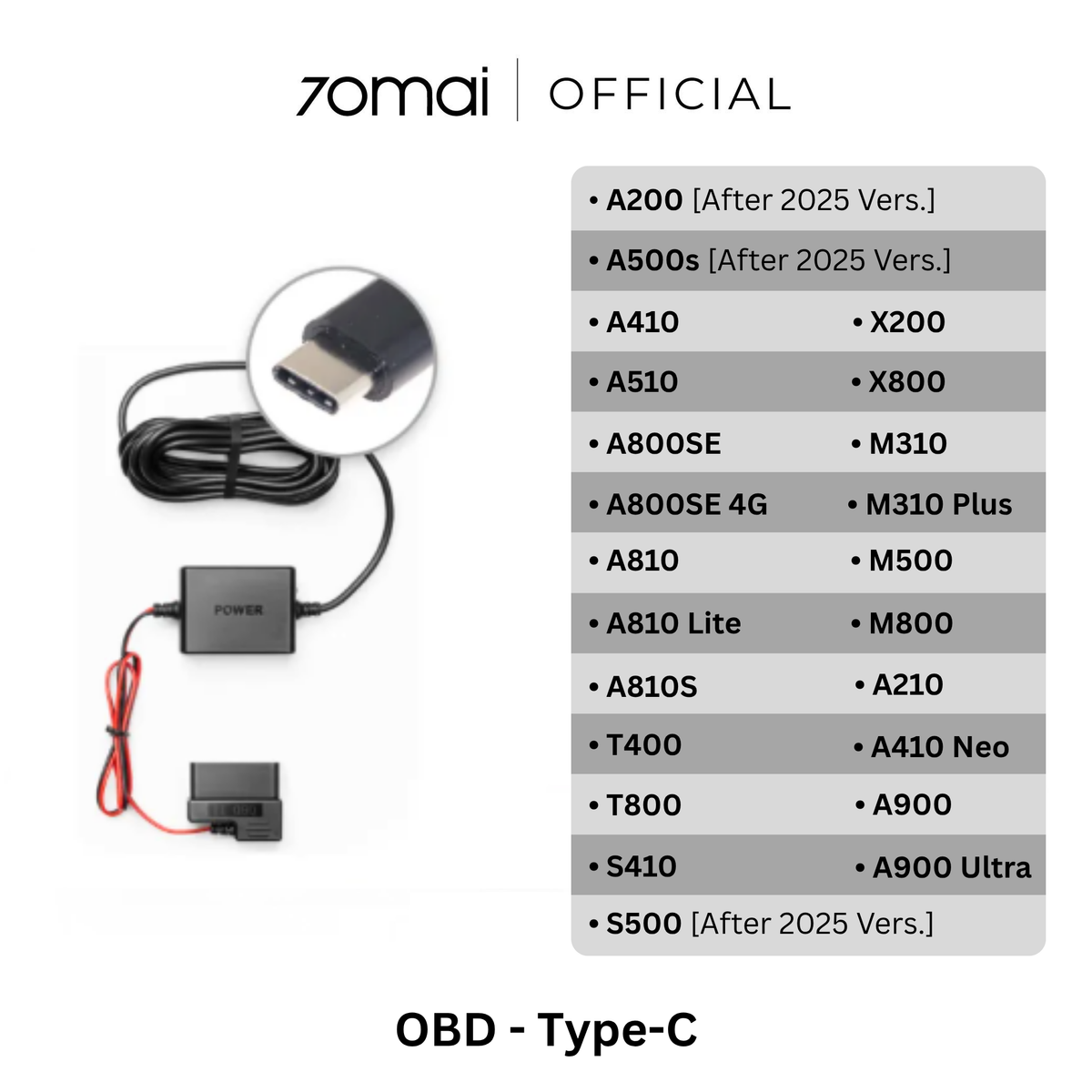

OBD Type-C hardwire kit with power box, OBD connector, and adapter list
OBD Type-C hardwire kit with black power module and two-core red wire connectors
OBD hardwire kit box and cable with safety and parking surveillance feature graphics

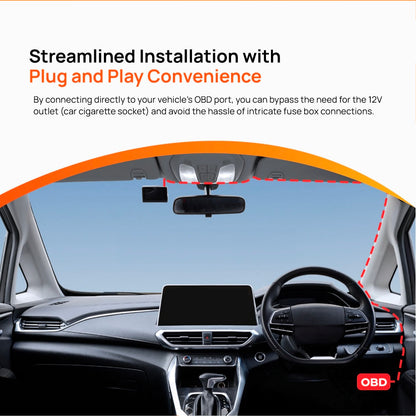

Plug-and-play installation setup showing OBD Type-C connection in a car interior
OBD hardwire kit for 24-hour parking surveillance with motion and time-lapse icons
Safety battery protection feature panel for an OBD hardwire kit
Customizable voltage threshold and surveillance duration chart for OBD hardwire kit
OBD hardwire kit specs card with 12–30V input and cable length details
OBD hardwire kit installation notice with step-by-step diagrams and QR code
Hardwire Kit

70mai OBD-II Hardwire Kit (Type-C)

RM109.00
As low as RM9.08 / mo at 0% for 12 months
Option
Out of stock
Ships Within 24 Hours
14-Day Defect Return Policy
Official Malaysia Warranty Support
Secure Checkout With These Payment Modes
Visa Mastercard FPX Amex Touch n Go GrabPay ShopeePay
View full details

The 70mai OBD-II Hardwire Kit is a "plug-and-play" alternative to the traditional fuse-box hardwire kit. It allows you to enable 24-hour parking surveillance by drawing power directly from your car's OBD-II port, which is typically found under the dashboard.

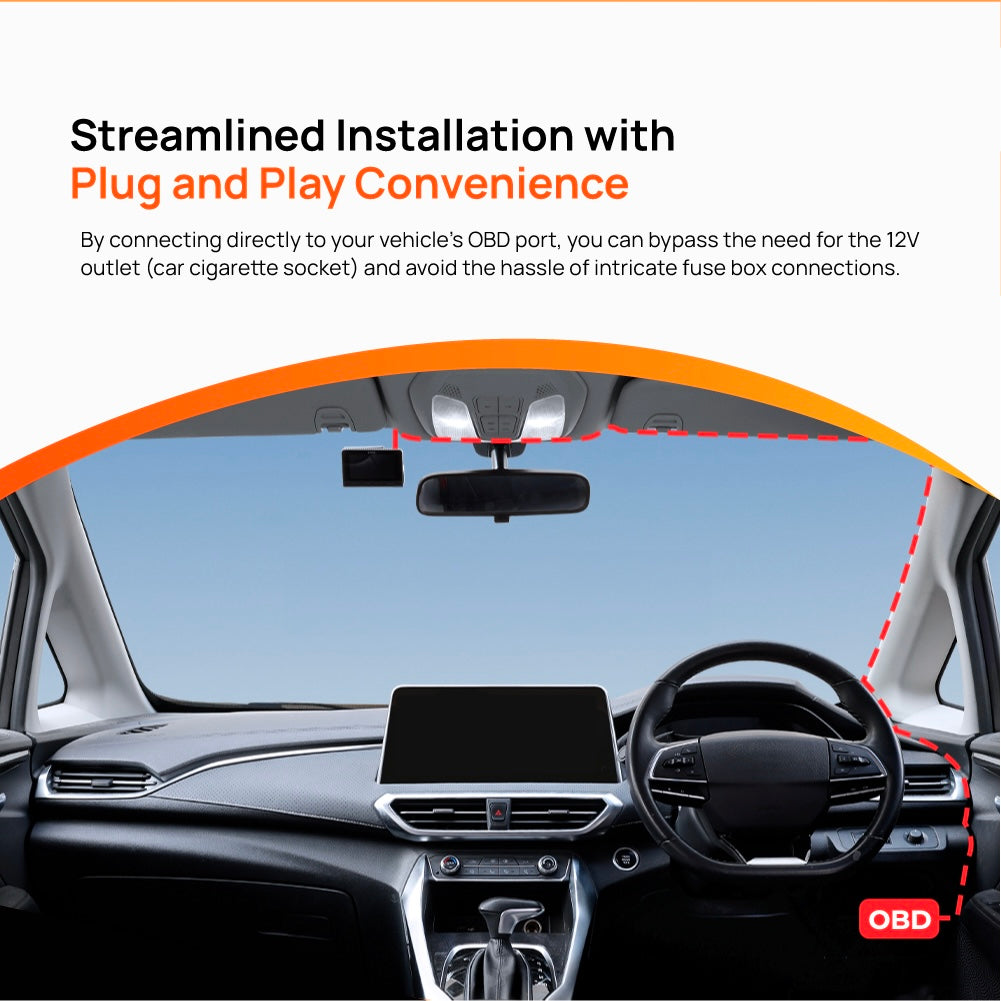

  • Plug-and-Play Installation

No need to open the fuse box, crimp wires, or find "ACC" and "VCC" slots. You simply plug it into the OBD port

  • Preserves Vehicle Warranty

Since no modifications are made to the car's electrical wiring or fuse box, it is often preferred for new cars under warranty

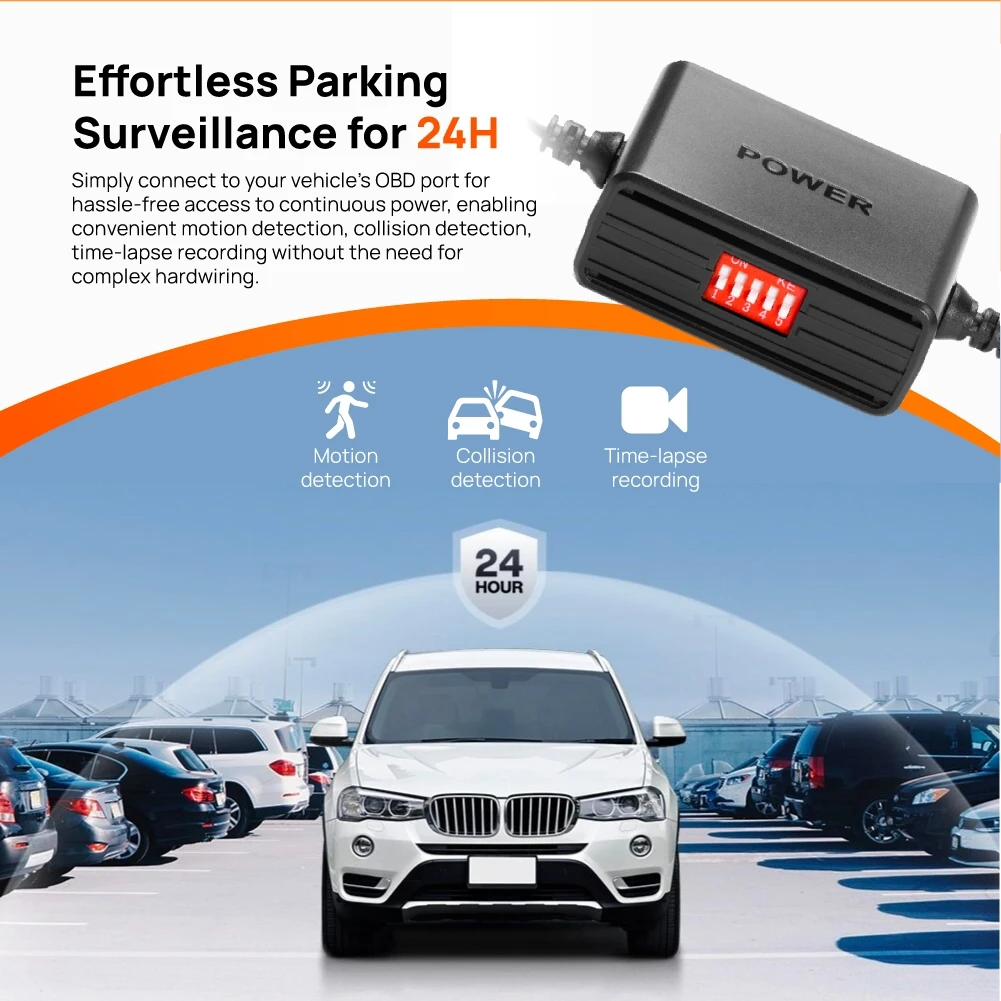

  • 24H Parking Surveillance

Enables collision detection and time-lapse recording modes when the car is parked

  • Battery Protection

Features a built-in low-voltage cutoff to ensure your car's battery doesn't drain completely, allowing you to start the engine safely

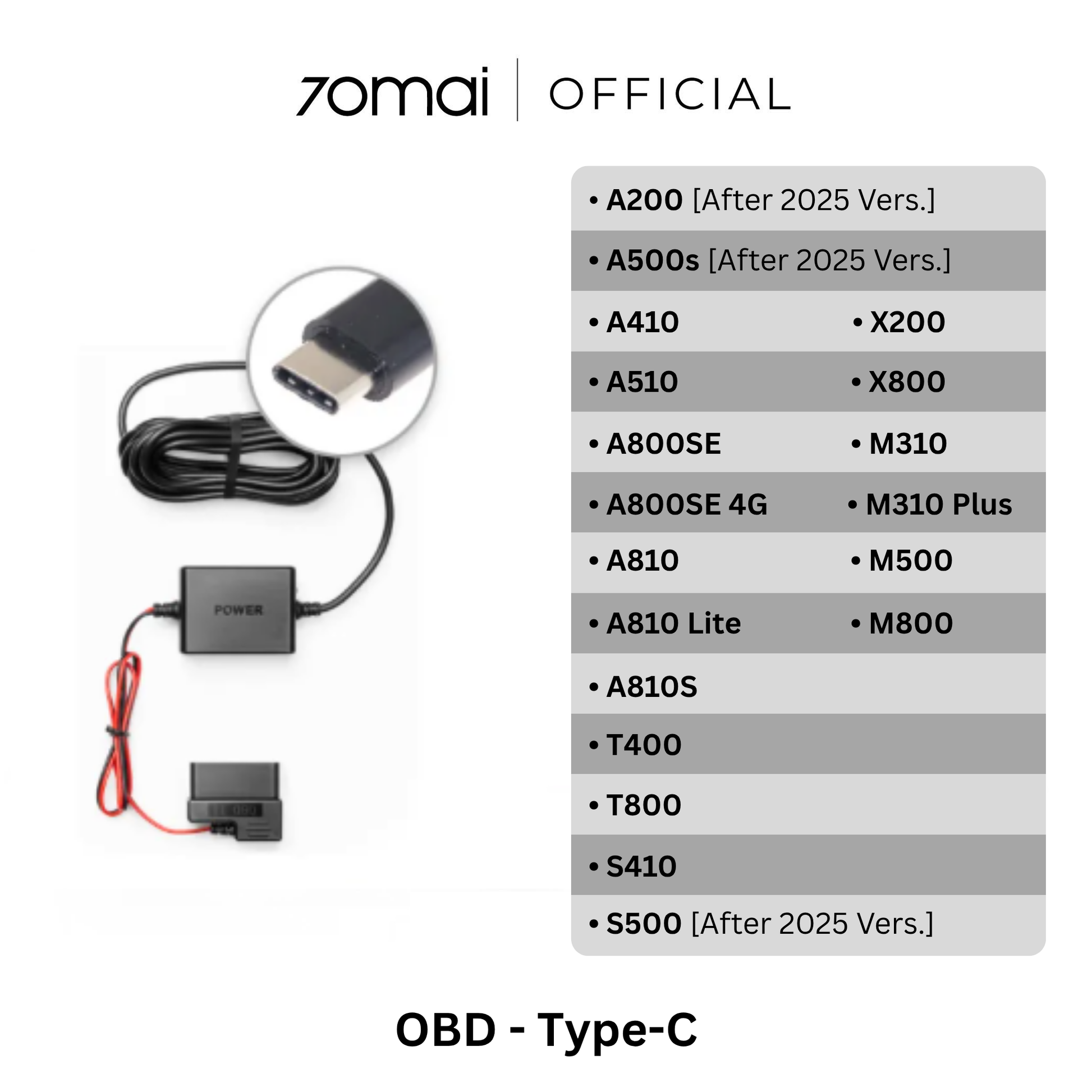

  • Dual Interface Options

Available in Type-C version

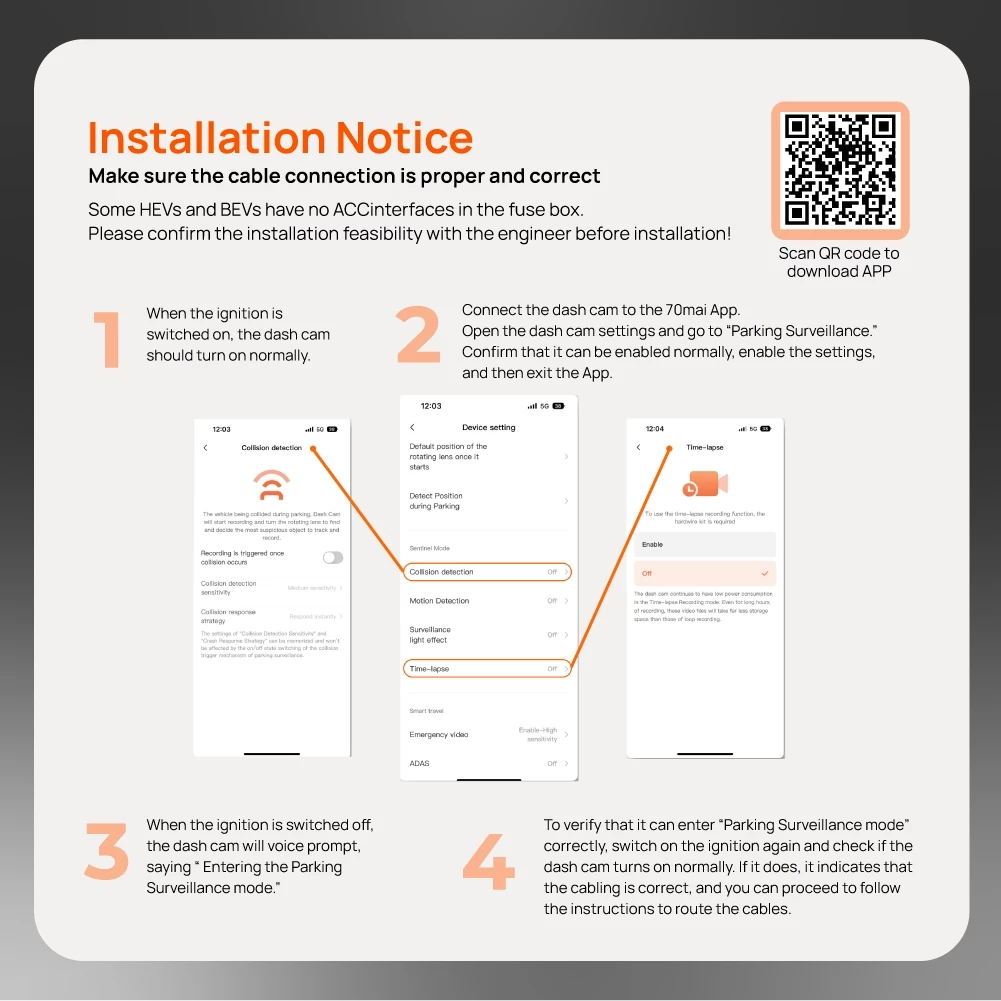

70mai Installation Guide
  • 70mai OBD Hardwire Kit x 1
  • User Manual x 1

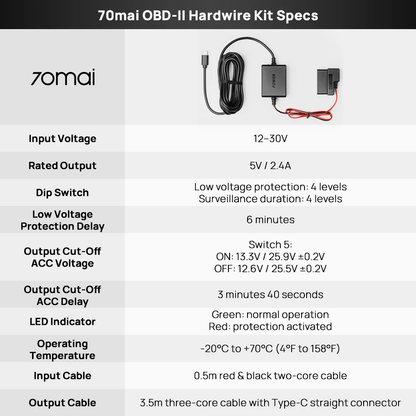

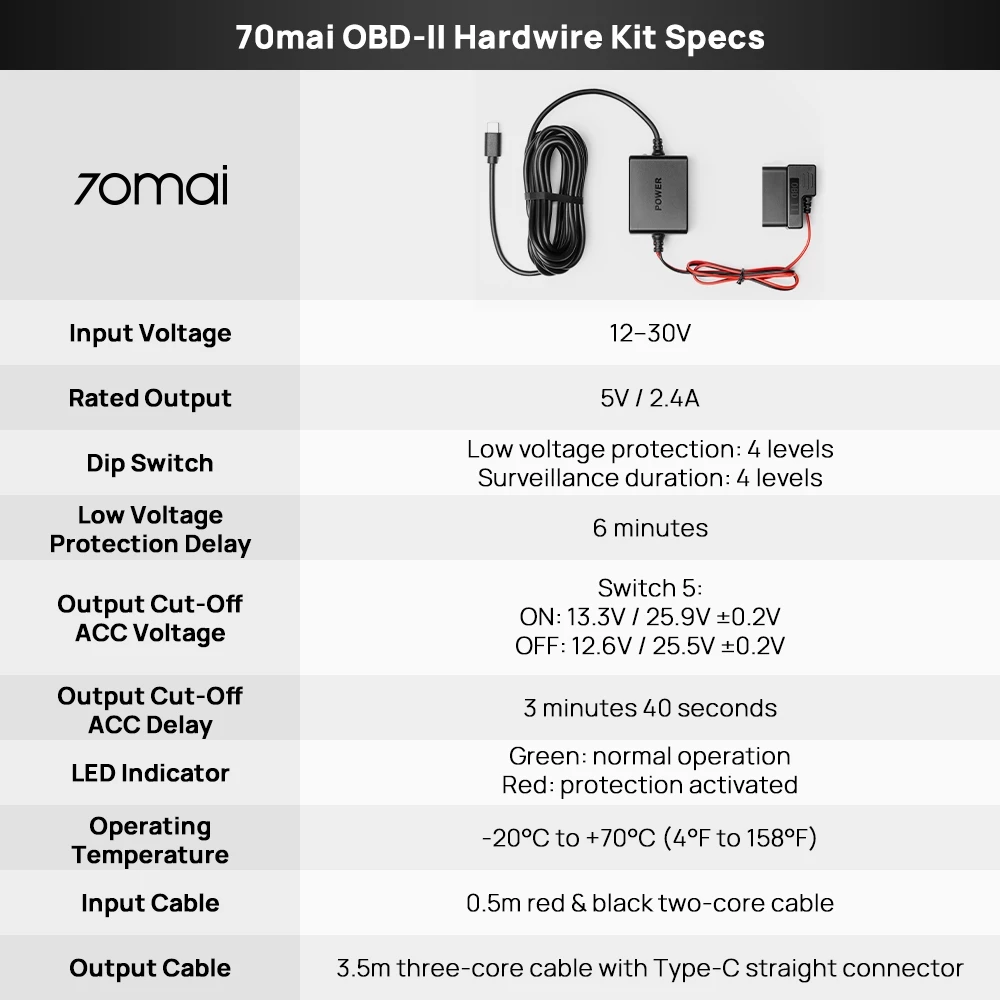

  • Input Voltage

DC 12-30V

  • Output Voltage

5V

  • Low Voltage Protection (Small Car)

11.6V

  • Low Voltage Protection (Big Car)

23.6V

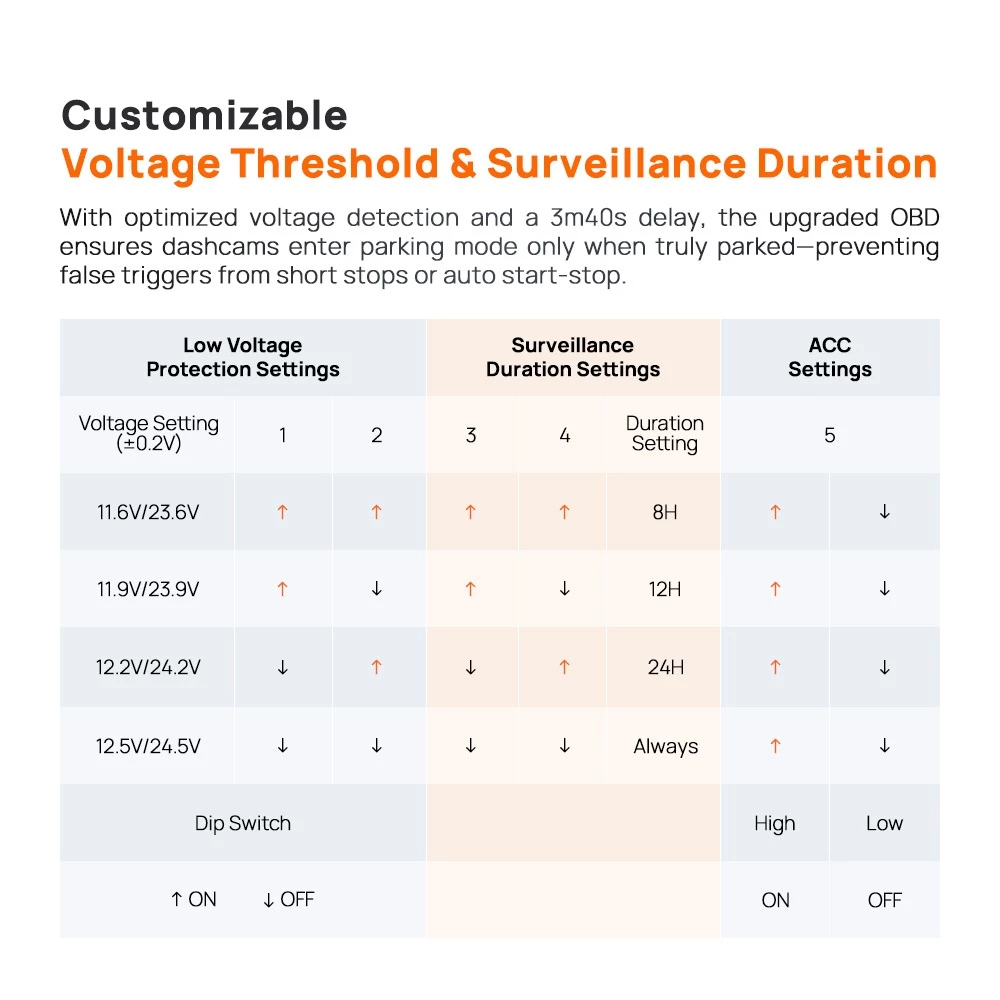

  • Adjustable Settings

Features DIP switches to manually set the voltage cutoff threshold and the surveillance duration (e.g., 2h, 6h, 12h, or 24h)

18 Months Warranty
